|The drum kit |
Occasionally, the hardware is used percussively as well, the most common example being a rim shot. John Morrison is noted for his drum solos played entirely on a hi-hat stand (and occasionally also on other parts of the kit hardware, adjacent furniture, and audience).
A drum "hoop" or "rim" may be made of metal, wood, or other materials and is used to hold a drumhead against a drum shell, either with bolts through metal "claws" attached directly to a hoop, or bolts through holes in a flanged or die-cast rim. The bolts, called tension rods, are screwed into threaded "lugs" attached to the drum shell, in order to tighten and tune the drumhead. A drum key is a type of wrench often used to screw the tension rods into the lugs.
This section needs expansion. You can help by adding to it. (January 2012)

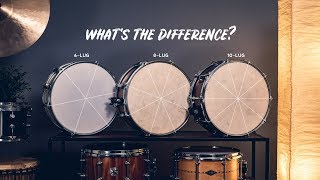

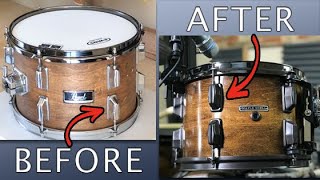

There are a number of components that make up a drum's anatomy. Some of these anatomical components vary dependent upon the type of drum, the manufacturer, and the year in which it was made. However, nearly all modern drums have the same essential components. Kick drums often have legs called spurs on either side of the drum shell. These spurs are used to prevent the kick drum from rolling side to side, to prevent the drum from sliding forward as it is being played and to provide overall added stability to the drum. Casings, also known as lugs, vary in shape and size. They all serve the same purpose as the receiving end of the drum tension rod (also known as a tuning screw) and provide the anchor point for the tension rods themselves. Casings are found on nearly all modern drums. The number of casings a drum has can vary from drum to drum and manufacturer to manufacturer. A drum can have as little as six casings and as many as twelve. Tension rods, also known as tuning screws, are threaded bolts that are placed around the rim of a drum and screw into the casings. They enable the musician to adjust the tension of the drum's head and affect its overall pitch, tone, and timbre. They come in many lengths and should also always have a tension rod washer that is often made of metal or hard plastic.
Snare drums will often have a "strainer" on one side and a "butt plate" on the other to hold the snare wires to the drumhead. Snare tension is controlled with a screw on the strainer. A strainer may also have a "throwoff" lever to move snares away from the drumhead, in order to prevent buzzing caused by other bass instruments while the snare is not in use, or to produce a tom-tom sound if desired.
While not required for operation, most drum manufacturers label their products by way of a drum "badge". The badge is a label attached to the drum shell with a grommet, which is embossed with the manufacturer's name or logo, and often a serial number as well. The grommet doubles as a "vent" hole for two-sided drums.
Drum mounts are fittings, normally attached to the drum shell, that enable a drum to be attached to a supporting bracket, stand or rack. Traditionally, smaller tom-tom drums are supported by mounts and known as hanging toms, while snare drums rest on a stand not attached to the drum, and floor toms and bass drums rest on their own legs.
Hanging tom mounts are of two main patterns:
There are many other patterns, including:
Tom-tom and cymbal stands may have a "boom arm" attached to extend holder reach, and a "tilter" to move instruments into a desired position. Smaller "clamp holders" may also be used to attach more instruments to existing stands. Drum "racks" are stands surrounding a drum kit onto which percussion instrument holders may be clamped. "Memory locks" are clamps used to make drum and telescoping positions permanent.
Snare drum stands have three arms as a "basket" to cradle the lower rim of the drum. There are several patterns.
The older, traditional pattern has two arms that pivot, and one that slides to accommodate varying sizes of drum. This is satisfactory for a tilted drum; The drum is tilted away from the sliding arm and rests on the two pivoting arms. If it is horizontal, or tilted the wrong way by inexpert players, then the drum is insecure.
The newer patterns use a symmetrical basket with a central screw adjustment, allowing the basket to be tightened onto the lower rim and the drum to be firmly held at any angle. They differ mainly in sturdiness and in the precise mechanism used for the screw adjustment.
Hanging toms are traditionally supported by tom-tom arms or brackets mounted on the bass drum, with one or two toms supported by each bass drum.
Extra toms may be supported by stands or racks.
Floor toms are traditionally supported by three feet resting on the floor, as the name suggests. More recently, some drummers have used rim mounts.

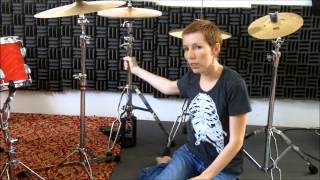

Cymbal stands have a threaded bolt or "cymbal post" to hold a cymbal down with a nut. Accessory booms and piggyback adaptors allow additional cymbals to be added to an existing stand (not to be confused with stacking).
The drum "throne" is a three or four-legged padded seat or stool the drummer sits on while playing. Thrones may be shaped like round cushions or in a saddle design. Throne heights may be adjusted to accommodate the drummer.
Many drum stands and brackets have provision for memory. This consists of a mechanical device, such as a collar, that allows quick reassembly in a preset position after the kit has been disassembled.

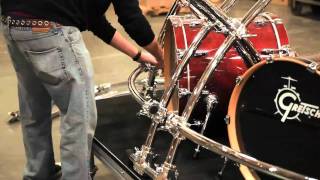

Some or all of the stands can be replaced by a drum rack. Racks are particularly used for larger kits, but can greatly reduce the weight and setup time of even moderately sized kits.
Cymbals and hanging toms are most often mounted on the rack, but bass drums, floor toms and even snare drums can be rack mounted, particularly if rim mounts are used.
